Mechanical protection with optimal air permeability

The plastic guard grilles are inserted directly into the foot holes of the LM shrouds and offer reliable protection against mechanical damage. Available in two variants for different hole patterns.

Technical Highlights:

• Material: PA6/PA66, black, UL94-V-0 flame retardant
• Tool-free plug-in assembly into shroud feet
• Type 01: Minimal outer dimensions, Type 02: Hole pattern cover
• Compatible: LM-25 to LM-119 series

EMI shielding with up to 50% improvement in EMI tightness

High-precision stainless steel grilles for electromagnetic compatibility and touch protection. Measurable damping improvement across the entire frequency range with maximum airflow.

Three hole variants available:

• RE: Round perforation offset (75% free cross-section)
• SE: Hexagonal perforation offset (85% free cross-section)
• SH: Hexagonal perforation for SLM shrouds (85% free cross-section)

Material: Stainless steel V2A, 0.2mm material thickness
Compatible: LM-25 to LM-119 as well as SLM series

Contamination protection with unrestricted function

PVC-free plastic mesh prevents the ingress of insects and contaminants. Ideal for outdoor applications and critical environments.

Versions:

• SF: For LM shrouds with plug-in feet
• SN: For SLM shrouds with plug-in nipples

Material: Plastic mesh anthracite, 0.2mm, REACH/RoHS compliant
Mounting: Tool-free with shrouds or screws

Active filtration for extended fan life

Filter material of class G2 according to DIN EN 779 for effective dust filtration with minimal increase in air resistance. Used in combination with guard grilles.

Features:

• Filter class G2, 5mm material thickness
• Self-extinguishing according to DIN 53438 F1
• Easy integration into protective grille system
• Replaceable without tools

Additional fastening for extreme requirements

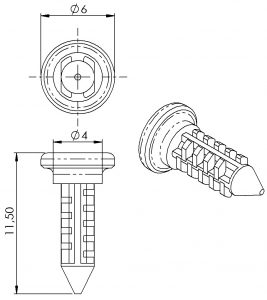

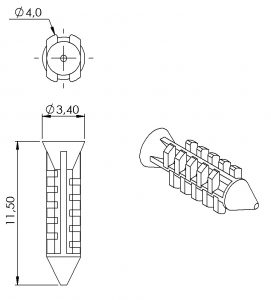

Special plastic rivets for fastening wire protective grilles and for securing the shrouds under extreme loads such as drop and vibration tests.

Applications:

• Lamella rivets: Wire protective grille fastening
• Safety rivets: Fall protection for LM-40 to LM-92

Material: PA6, black, UL94-V-0
Compatibility: Holes of the LM plug-in feet (Ø 3.6mm)

Versatile fastening for individual applications

Elastic elements for special applications as housing feet, stop buffers or for mounting axial fan accessories outside the standard shroud systems.

Standard version:

• Height: 4.5mm, Diameter: 11.0mm
• TPE material, 65° Shore A
• Temperature range: -40°C to +100°C
• Individual dimensions on request
